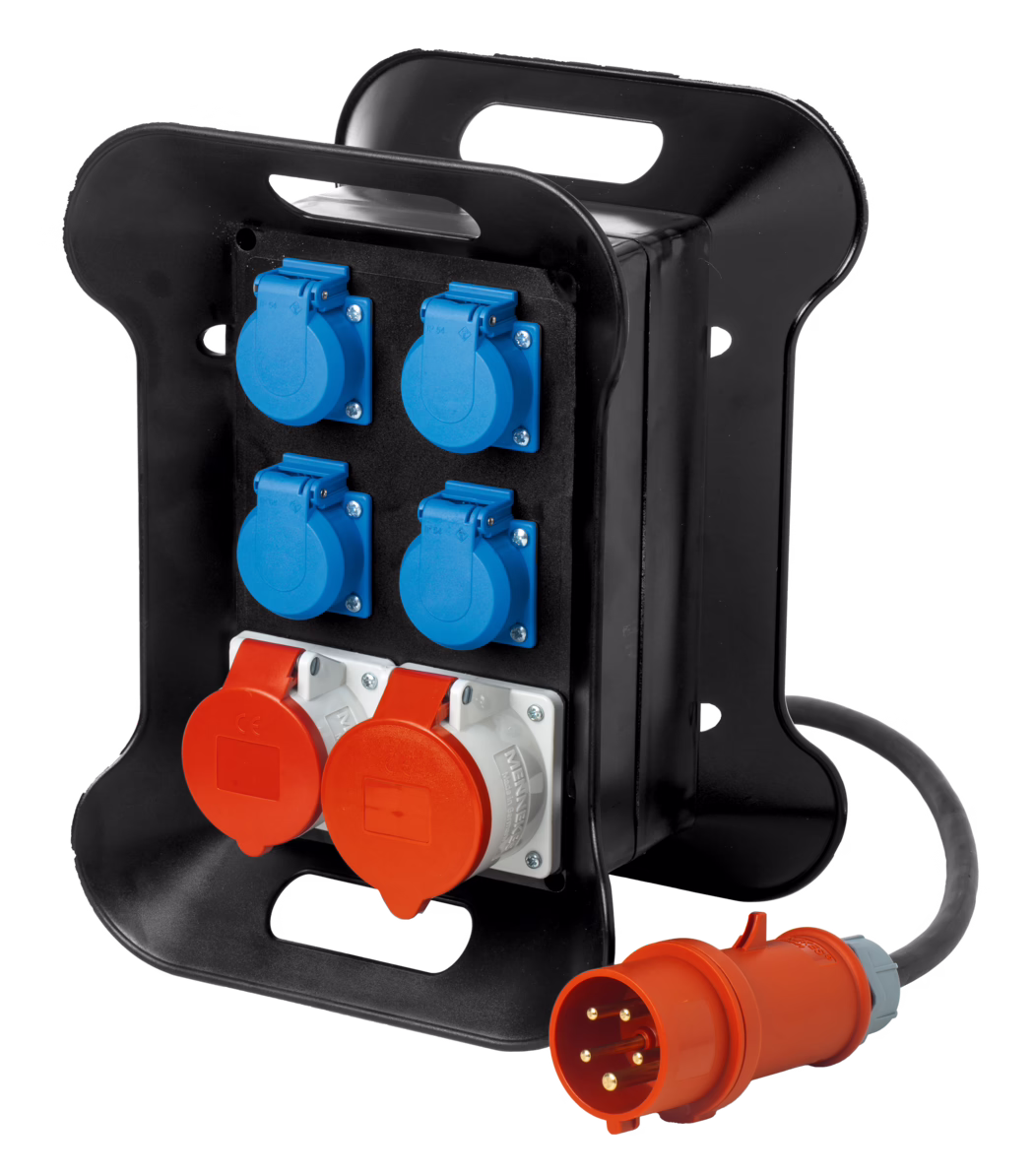

A portable industrial power distribution box mounted in a black metal frame with integrated carrying handles. The front panel shows four blue, weather-protected 230 V socket outlets arranged in two rows, each with a hinged protective cover and fixed with visible screws. Below them are two larger red 400 V three-phase industrial sockets with hinged lids mounted on a grey plate. A heavy-duty black cable exits the side of the unit and ends in an orange 5-pin CEE male plug placed in front; the plug reveals five brass pins. The frame has rounded side panels with cut-out handles and a stable base so the unit can stand upright; the visible components appear robust and suitable for construction sites, events or temporary power distribution. The image is brightly lit on a white background and clearly shows details such as screw heads, plastic covers, the cable strain relief and the textured metal frame.

IP44 Portable Construction Site Power Distributor Useful tools

Mobile construction site power distributor

    Properties

    • Housing made of unbreakable plastic
    • Input: H07RN-F 5G2.5, 1.6 m, CEE 5-pole 400 V/16 A, 6 h
    • Output: 2 x CEE 5-polig 400 V / 16 A, 6 h
    • 4 x shockproof sockets 230 V / 16 A
    • For load of up to 11 kW
    • IP44, tested according to VDE 0620-1, IEC 60309, EN 61439-4, DIN EN 50525-2-21-21
    • The ergonomically shaped carrying handle and the cable winder make it easy to carry

    LxWxH

    20 x 25 x 35 cm

    Article number Article Shipping unit
    16917 IP44 Portable Construction Site Power Distributor
    Piece :
    1
